BRONCO PERFORMANCE

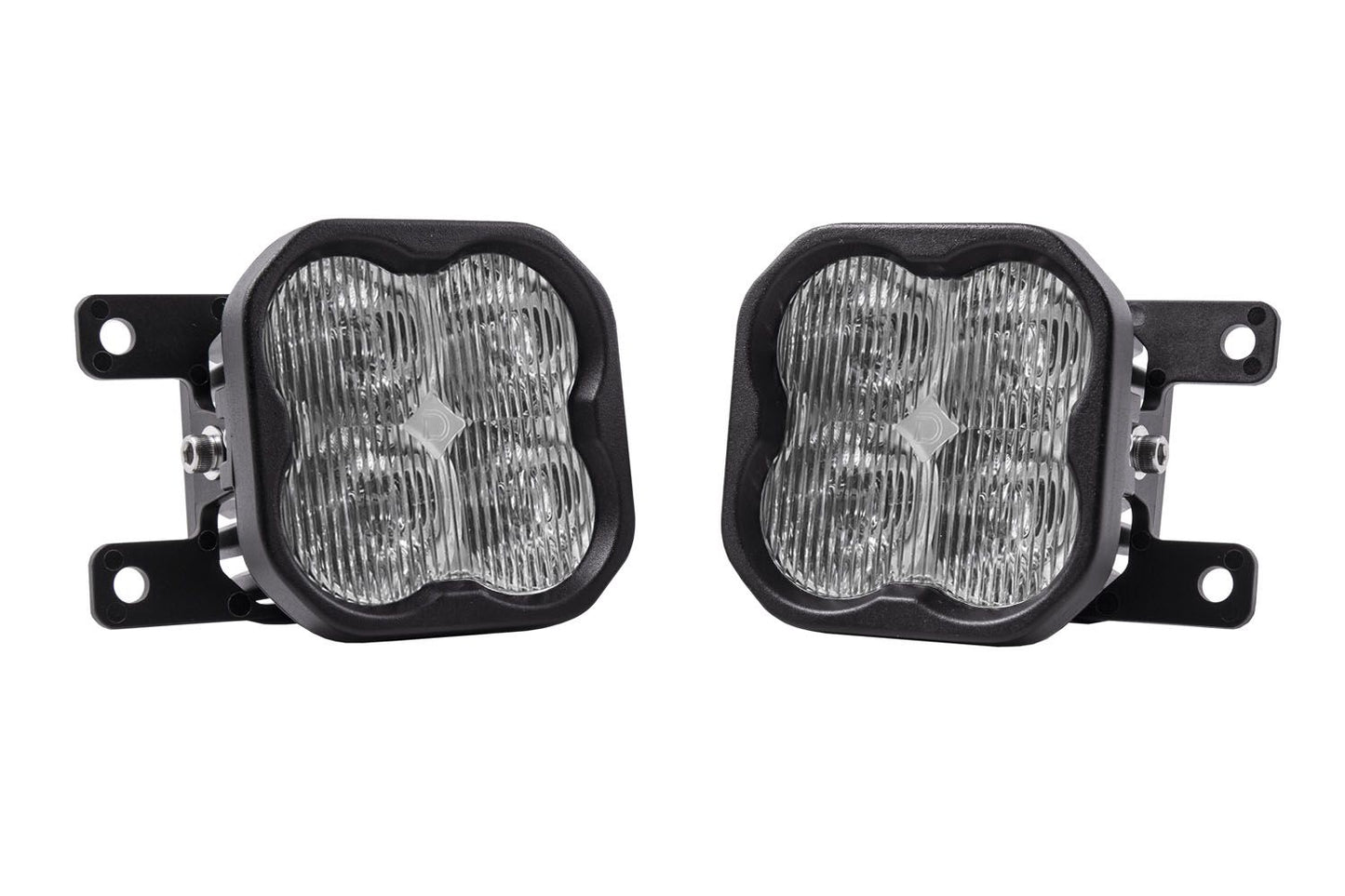

Diode Dynamics SS3 LED Fog Light Kit For 2021-2023 Ford Bronco (W/ Standard Bumper)

Diode Dynamics SS3 LED Fog Light Kit For 2021-2023 Ford Bronco (W/ Standard Bumper)

Regular price $319.95 USD
Regular price Sale price $319.95 USD
Sale Sold out
Shipping calculated at checkout.
Power Level
Amber Backlight

Features

  • Direct replacement for Ford Bronco fog lamps
  • SAE-compliant road-legal output
  • Includes custom bracket with bezel, for factory-style appearance
  • Features bolt-on brackets, with plug-and-play wire adapters
  • Advanced TIR optics provide high efficiency and focus
  • Durable powdercoated aluminum die-cast
  • Engineered and Assembled in USA

Overview

Overview. Upgrade the fog lights on your Ford Bronco with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included custom bracket with bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play. The custom-molded brackets included with this kit bolt right into the factory fog light mounting points, and the included wire adapters connect to the factory bulb socket, so there is no additional wiring needed. However, slight modification of the inner plastic fog light surround is required in order to mount the pod to the bracket.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

SS3 Beam Patterns

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information or click here.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Ford or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • Two (2) SS3 3” Standard LED Pods
  • Two (2) Type A brackets
  • Two (2) H11 2-pin DT adapters
  • One (1) H11 4-pin DT backlight tap wire kit
  • Mounting hardware
  • Mounting guide
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

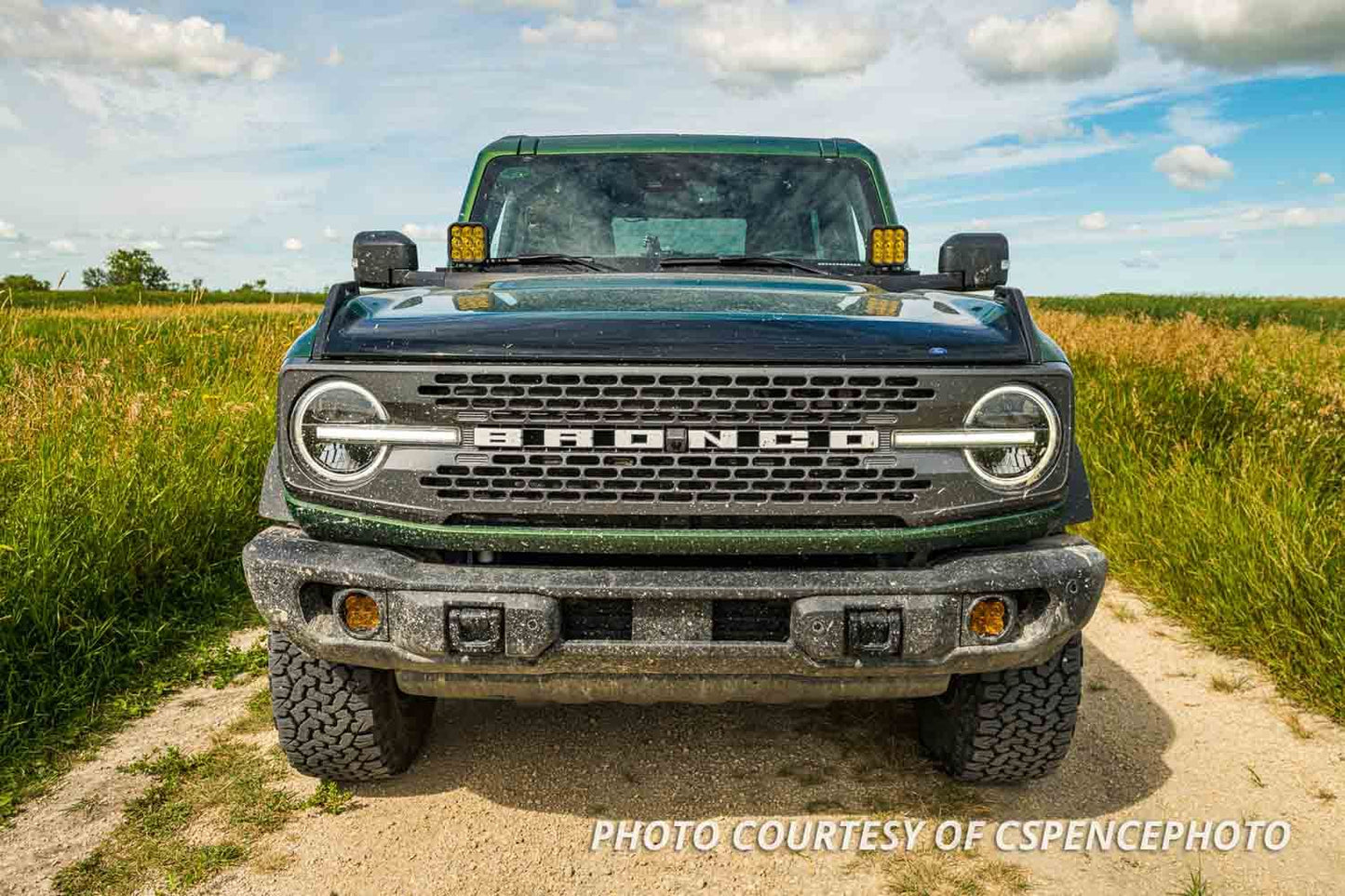

Note: This kit is compatible with the standard plastic bumper included with the Base, Big Bend, Outer Banks, and Wild Track trim levels. This kit is also compatible with the capable bumper included with the 2022+ Black Diamond and Badlands trim levels.

Slight modification of the inner plastic fog light surrounds is required in order to mount the pod to the bracket.

This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

Application: Fog Light
Make: Ford
Model: Bronco
Years: 2021, 2022, 2023

NOTE: Specifications listed here are for each individual pod.
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Driving White Sport 54,700 cd 547 lux 1,520 lm 2,262 lm 6000K White
Driving White Pro 66,500 cd 665 lux 3,000 lm 5,796 lm 6000K White
Fog White Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White
Fog White Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White
Fog White Max 18,000 cd 180 lux 3,500 lm 7,920 lm 6000K White
Fog Yellow Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Yellow Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Yellow Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow



Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Backlight Power (watts): 0.4
Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3
Backlight Current (amps @ 12.8V): 0.03
Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
Beam Angle: Driving, 20°x8°, Fog, 80°x8°
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 0.85
Product Weight (lb): 1.7
Shipped Weight (lb): 3
Application: Fog Light
Make: Ford
Model: Bronco
Years: 2021, 2022, 2023
