Diode Dynamics Stage Series SS3 Backlit Ditch Light Kit For 2021-2024 Ford Bronco

Diode Dynamics Stage Series SS3 Backlit Ditch Light Kit For 2021-2024 Ford Bronco

Regular price $259.95 USD
Regular price Sale price $259.95 USD
Sale Sold out
Shipping calculated at checkout.
Color: White
Power Level

Features

  • Bolt-on fitment for 2021+ Ford Bronco.
  • Allows you to mount two Stage Series LED pods in the a-pillar location.
  • Utilizes factory Accessory Ready mounting points for a simple installation.
  • Advanced TIR optics provide high efficiency and focus.
  • Engineered and Assembled in USA.

Overview

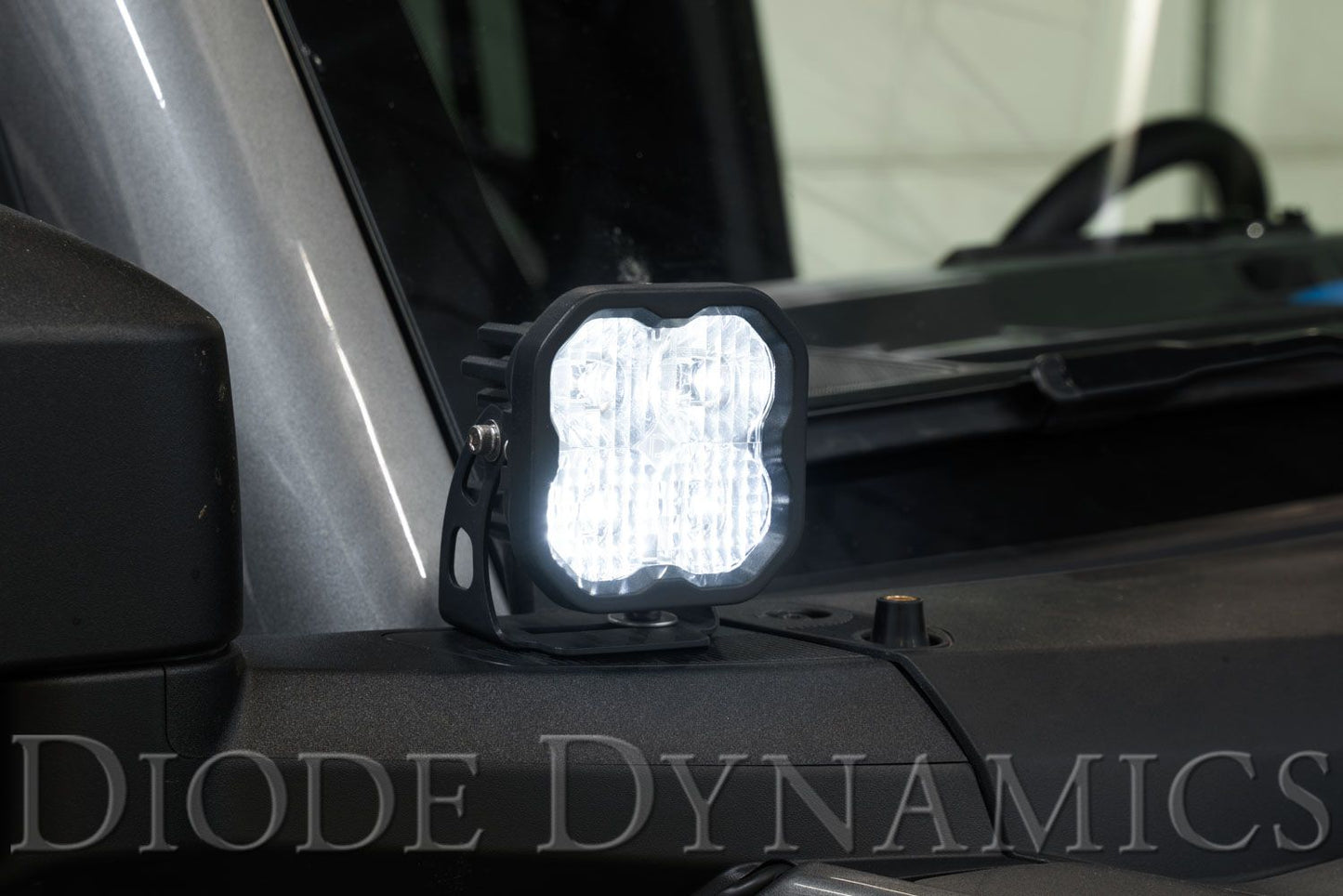

Perfect fitment. The Stage Series SS3 Backlit Ditch Light Kit for the 2021+ Ford Bronco allows you to easily mount two SS3 Pods to the factory Accessory Ready mounting points near the a-pillar location, above the hood. No cutting or drilling required! This kit will not interfere with the antenna, or raising and lowering the hood.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Pattern. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

SS3 Beam Pattern

For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way!

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport, or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.

Backlight Functionality. The SS3 LED pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • Two (2) SS3 Standard LED Pods
  • One (1) Heavy Duty Dual Output 4-pin Wiring Harness
  • Two (2) Mounting brackets
  • Mounting hardware
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Make: Ford
Model: Bronco
Years: 2021, 2022, 2023, 2024

NOTE: Specifications listed here are for each individual pod.
Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Combo White Sport 31,500 cd 315 lux 1,520 lm 2,262 lm 6000K White
Combo White Pro 35,100 cd 351 lux 3,000 lm 5,796 lm 6000K White
Combo Yellow Sport 28,100 cd 281 lux 1,300 lm 1,930 lm 3000K Yellow
Combo Yellow Pro 33,406 cd 334 lux 2,700 lm 5,220 lm 3000K Yellow



Power (watts): Sport: 14.5, Pro: 36
Operating Voltage: 9-30V
Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 2.15
Product Weight (lb): 3.1
Shipped Weight (lb): 5.25
Make: Ford
Model: Bronco
Years: 2021, 2022, 2023, 2024
